LIFT Vddsyn (68) pin
REPLACE ORIGINAL QUARTZ RESONATOR WITH A 8MHz ONE
See Application Note: EB422.PDF available from www.freescale.com
|

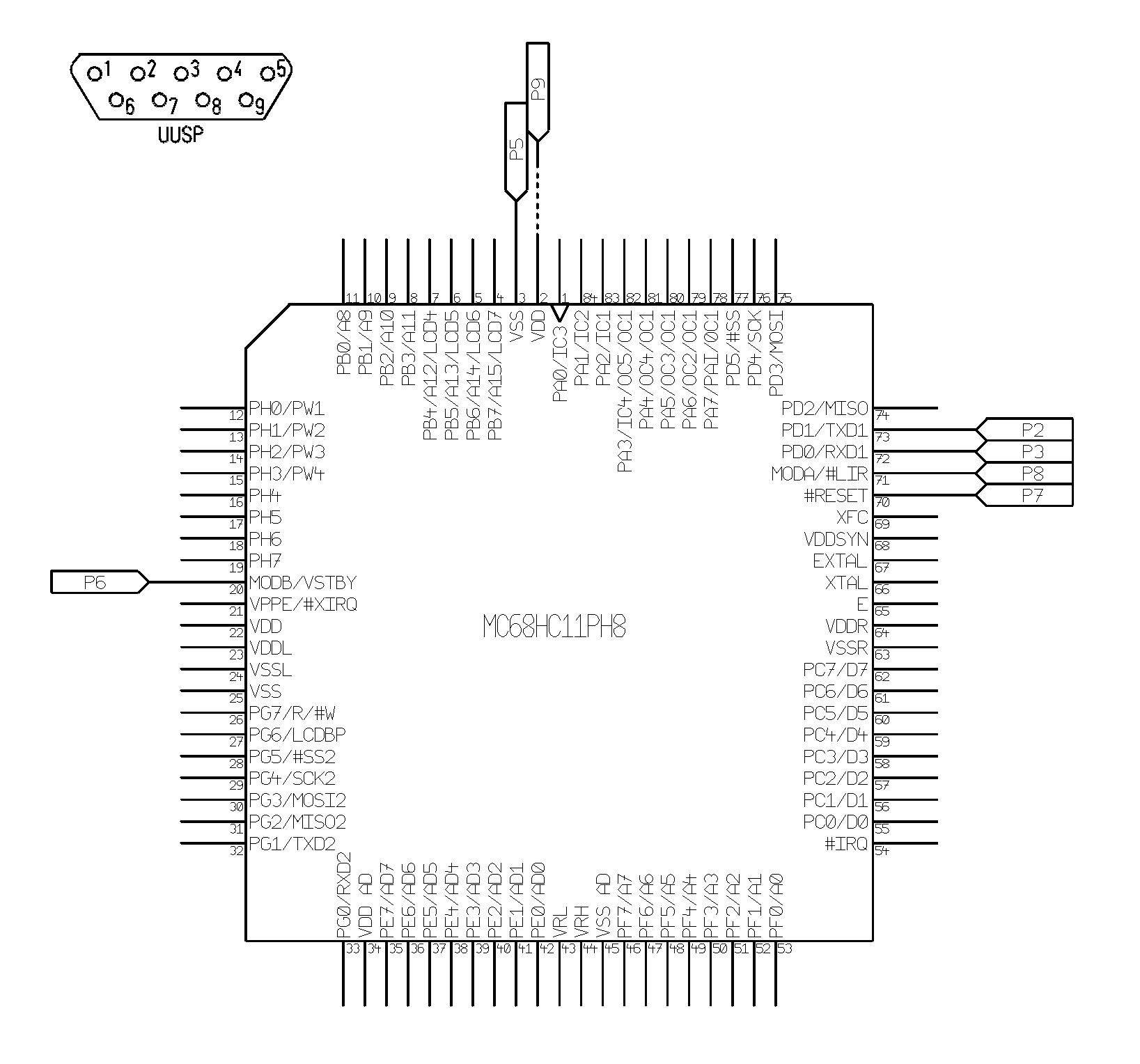

<< Click to Display Table of Contents >> Navigation: UUSP-S (UPA-USB Serial Programmer-S) > Motorola/Freescale HC11 > MC68HC11PH8 PLCC84 |
LIFT Vddsyn (68) pin
REPLACE ORIGINAL QUARTZ RESONATOR WITH A 8MHz ONE
See Application Note: EB422.PDF available from www.freescale.com
